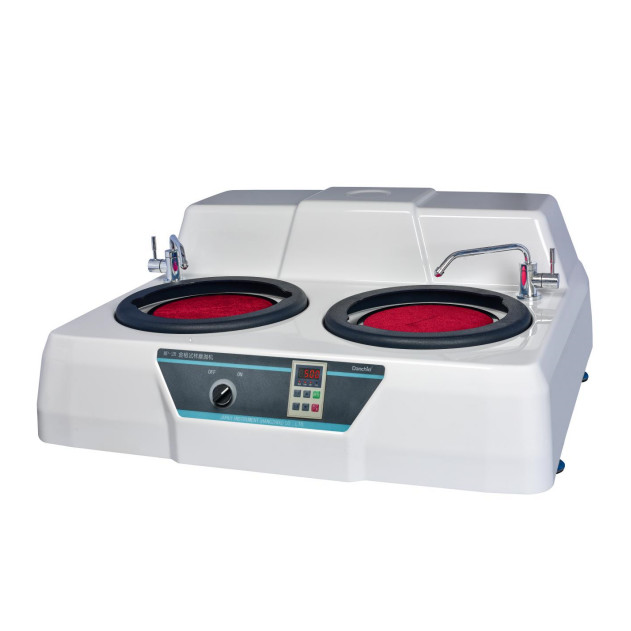

MP-2B Metallographic Sample Grinding And Polishing Machine
1.Product overview
In the metallographic sample preparation process, the grinding and
polishing of the sample are indispensable procedures. After the
sample is polished, a mirror-like surface can be obtained. The
MP-2B metallographic sample grinding and polishing machine adopts
frequency converter to adjust the speed, which can make the speed
of the grinding and polishing disk steplessly adjustable between
50-1000r/min. The grinding and polishing of the sample can be
completed by replacing the metallographic sandpaper and polishing
fabric. The polishing process shows a wider range of applicability.
The double-disc design can be operated by two persons at the same
time. The shell adopts integral plastic suction technology. It has
novel appearance and features such as stable rotation, low noise,
convenient operation and high work efficiency. It also has a
cooling device that can be tested during grinding and polishing.
The sample is cooled to prevent damage to the metallographic
structure due to overheating of the sample. It is suitable for the
metallographic laboratory of factories, universities and research
institutes. It is an excellent equipment for grinding and polishing
metallographic samples.
2.Main functions and features
1,The shell is made of high-end ABS, which has a novel appearance
and high-end atmosphere.
2. The faucet adopts all-copper chrome plating process, which has
good corrosion resistance.
3. Stepless speed regulation, convenient and quick to meet various
needs.
4. The double-disc design makes sample preparation more efficient.
5. The grinding and polishing plate can be rotated clockwise or
counterclockwise to meet different needs
3. Technical parameters
| Diameter of Grinding Disc | Standard φ203mm (other specifications customized) |
| Rotating Speed of Grinding Disc | 50-1000r/min (stepless speed regulation) |
| Rotation direction of grinding and polishing disc | Forward and reverse |
| power supply | Voltage: 220V Frequency: 50HZ |
| Motor | 0.55KW |
| Appearance size | 730×765×320mm |
| weight | 42Kg |
4. configuration list
| Product accessories | unit | quantity | Remark |
| Grinding and polishing disc | indivual | 2 | Installed on the device |
| Water retaining ring | indivual | 2 | Installed on the device |
| Pressure ring | indivual | 2 | Installed on the device |
| Water sandpaper | open | 2 | Φ203mm |
| Polished fabric | open | 2 | Φ203mm |
| Inlet pipe | root | 1 | Φ 6 points interface |
| Outlet pipe | root | 1 | Φ32 |
| Technical documents | 1 copy of product manual 1 copy of product certificate |
