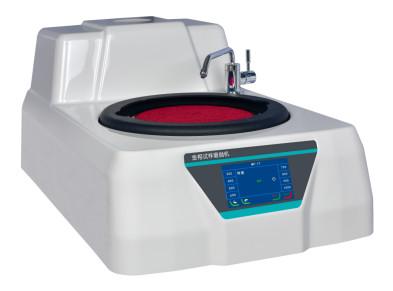

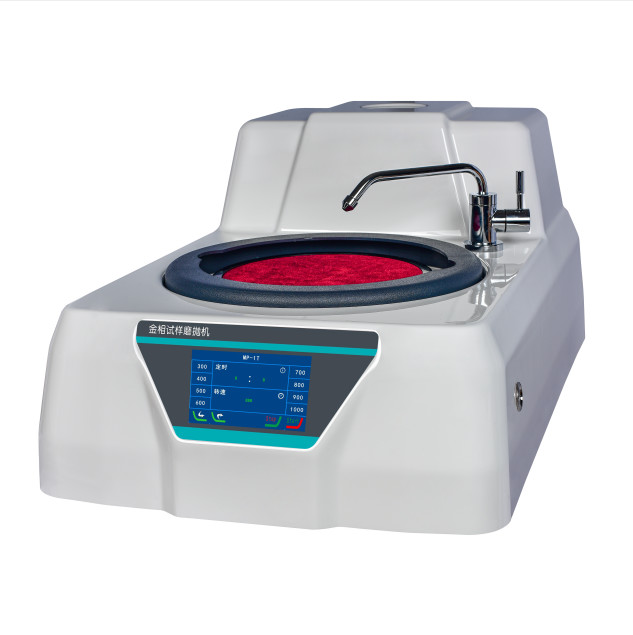

MP-1T Touch Screen Metallographic Sample Grinding And Polishing
Machine
1.Product overview
In the metallographic sample preparation process, the grinding and
polishing of the sample are indispensable procedures. After the
sample is polished, a mirror-like surface can be obtained. The
MP-1T metallographic sample grinding and polishing machine adopts a
high-end touch screen, which can make the speed of the grinding and
polishing disk infinitely adjustable between 50-1000r/min. The
grinding and polishing process of the sample can be completed by
replacing the metallographic sandpaper and polishing fabric. ,
Showing a wider range of applicability. The shell adopts integral
blister, novel appearance, stable rotation, low noise, convenient
operation, high working efficiency, etc., and comes with a cooling
device, which can cool the sample during grinding and polishing to
prevent damage due to overheating of the sample Microstructure. It
is suitable for the metallographic laboratory of factories,
universities and research institutes. It is an excellent equipment
for grinding and polishing metallographic samples.
2.Main functions and features
1. The shell is made of high-end ABS, which has a novel appearance
and high-end atmosphere.
2. The faucet adopts all-copper chromium plating process, which has
good corrosion resistance
3. With automatic cleaning function, it can automatically clean the
sewage tank to keep the sewage tank clean (optional)
4. Brushless DC motor, stable rotation, low noise, long life
(optional)
5. Stepless speed regulation plus eight-speed fixed speed,
convenient and quick to meet various needs
6. Countdown function, the time can be set arbitrarily, and the
machine will stop when the time comes. (Optional)
7. The grinding and polishing plate can be rotated clockwise or
counterclockwise to meet different needs
3. Technical parameters
| Diameter of Grinding Disc | Standard φ203mm (other specifications customized) |
| Rotating Speed of Grinding Disc | 50-1000r/min(Stepless speed regulation) |
| Rotating Speed of Grinding Disc | Eight gear fixed speed |
| Rotation direction of grinding and polishing disc | Forward and reverse |
| power supply | Voltage: 220V Frequency: 50HZ |
| Motor | 0.25KW |
| Appearance size | 730×420×320mm |
| weight | 35Kg |
4. configuration list
| Product accessories | unit | quantity | Remark |
| Grinding and polishing disc | indivual | 1 | Installed on the device |
| Water retaining ring | indivual | 1 | Installed on the device |
| Pressure ring | indivual | 1 | Installed on the device |
| Water sandpaper | open | 1 | Φ203mm |
| Polished fabric | open | 1 | Φ203mm |
| Inlet pipe | root | 1 | Φ 6 points interface |
| Outlet pipe | root | 1 | Φ32 |
| Technical documents | 1 copy of product manual 1 copy of product certificate |
